1-RC-30 Ch= RC-1201D
Use red slider bar for more.
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
RCA Manufacturing || Victor Talking Machine | ||||
|---|---|---|---|---|---|
| Year: 1961 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: 12DT8 12BA6 12EQ7 12BE6 14GT8 50C5 |
| Main principle | Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 6 AM circuit(s) 8 FM circuit(s) |
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-120 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm |
| Power out | |
| from Radiomuseum.org | Model: 1-RC-30 Ch= RC-1201D - RCA RCA Victor Co. Inc.; New |
| Material | Plastics (no bakelite or catalin) |
| Shape | Tablemodel with Clock ((Alarm-) Clock Radio). |
| Notes | Diode Rectifier. The RCA Modell 1RC30 is an AC Operated 6 Tube AM-FM Superheterodyne Receiver. |

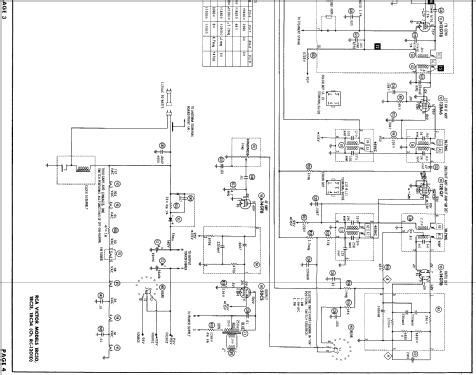

| Circuit diagram reference | Beitman Radio Diagrams Vol. 22, 1962 |
| Literature/Schematics (1) | Photofact Folder, Howard W. SAMS (Date 8-62, Set 591, Folder 11) |
