For model 1X Ch=1003, RCA (RCA Victor Co. Inc.); New York (NY):
With courtesy by Ebayseller ac_sys

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner

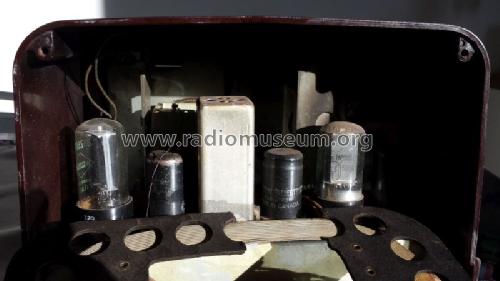

Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: 1X Ch=1003 - RCA RCA Victor Co. Inc.; New
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 9.75 x 6.625 x 5.875 inch / 248 x 168 x 149 mm
Notes Brown
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before

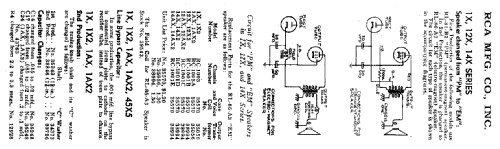

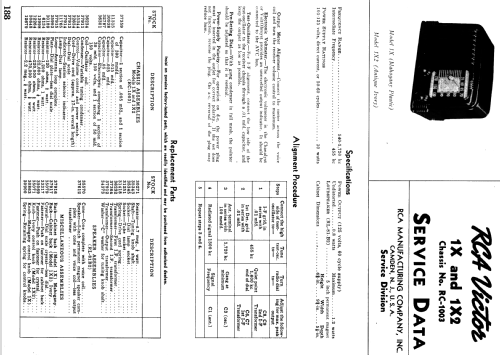

Literature/Schematics (1) RCA Victor Service Notes "Red Book" Series
