• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1959

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 151234

• • alternative name: RCA Manufacturing || Victor Talking Machine

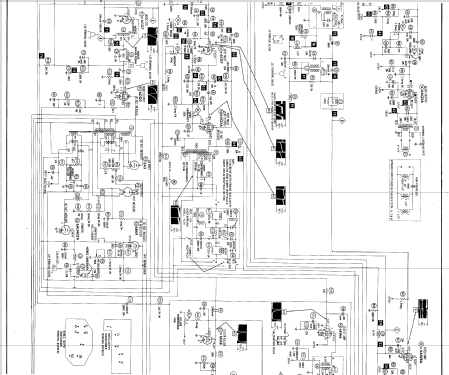

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 210CK920 Ch= CTC9F - RCA RCA Victor Co. Inc.; New

• Shape
• Console with any shape - in general

• Notes
• 21" NTSC color TV with US standard VHF tuner Channels 2 thru 13
  Picture tube: 21CYP22
  Complete service documents see chassis CTC9A,B,F,H,N,P.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 10-59, Set 459, Folder 1)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
