• Year
  • 1959
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 151368
    • alternative name: RCA Manufacturing || Victor Talking Machine

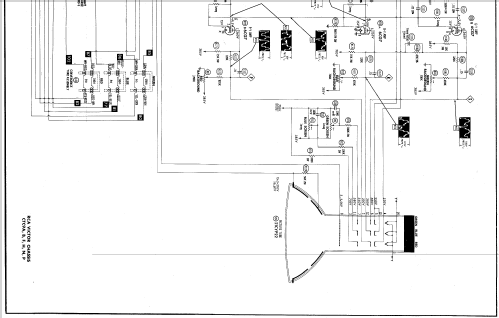

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 25
  • Valves / Tubes
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org
  • Model: 210CKR940U Ch= CTC9P - RCA RCA Victor Co. Inc.; New
  • Shape
  • Console with any shape - in general
  • Notes
  • 21" NTSC color TV with US standard VHF-UHF tuner Channels 2 thru 13, 14 thru 84 UHF
    Picture tube: 21CYP22
    Complete service documents see chassis CTC9A,B,F,H,N,P.
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
