• Year
  • 1956 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 293791
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 20
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 21-T-635U Ch= KCS97A - RCA RCA Victor Co. Inc.; New
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

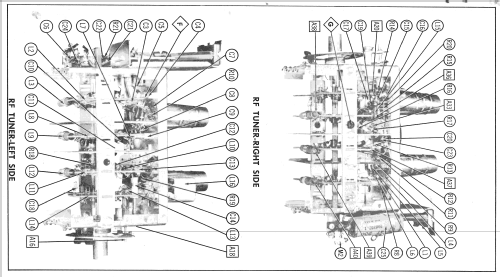

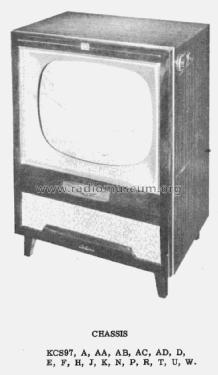

  • THE RCA VICTOR Model 21-T-635U is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF.Equipped with VHF Tuner KRK29N, UHF Tuner KRK36, chassis KCS97A and picture tube 21AMP4A.

  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
