• Year
  • 1956 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 269737
    • alternative name: RCA Manufacturing || Victor Talking Machine

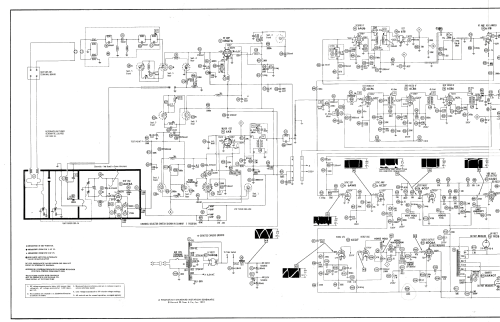

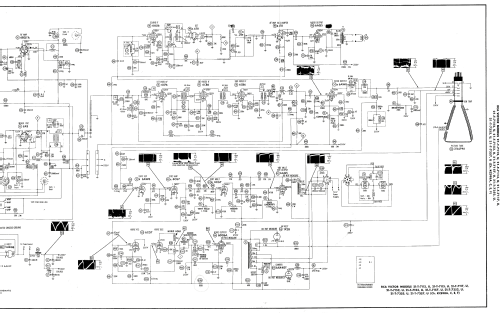

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 17
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 110-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 21-T-7112 Ch= KCS98A - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

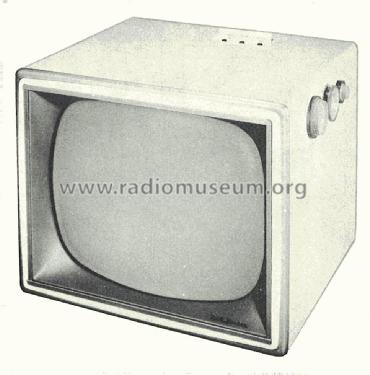

  • RCA VICTOR Model 21-T-7112 is an 21" b/w TV with US FCC standard VHF tuner with channels 2 thru 13 .Equipped with chassis KCS98A and picture tube 21ALP4A.

  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
