21-CD-8926U Ch= CTC7F
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1958
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 195605
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Picture from RCA Datasheet

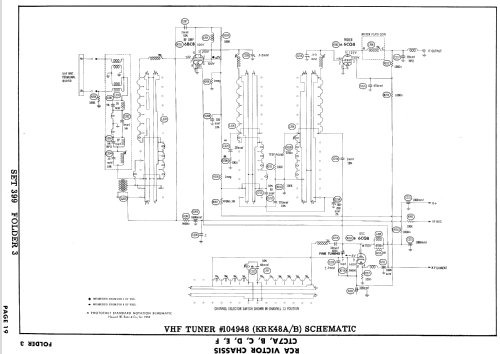

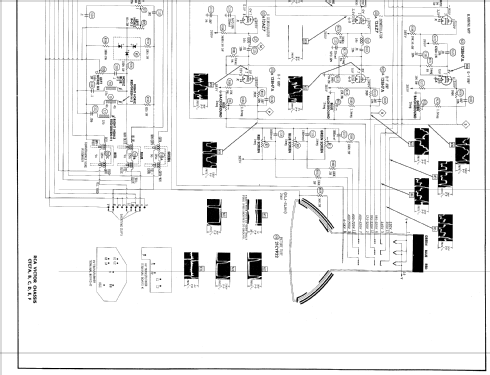

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 29
- Valves / Tubes
- 6BC8 6CQ8 6AF4A 6BZ6 6BZ6 6AW8A 6AW8A 12BY7A 6U8A 6DT6 6AQ5A 6CG7 6AQ5A 6CG7 6DQ5 6AU4GTA 1V2 3A3 6BK4 6U8A 6AW8A 12AZ7 12BH7A 12BH7A 6U8A 6BN8 5U4GB 5U4GB 21CYP22
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 115V = 110 -120 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 21-CD-8926U Ch= CTC7F - RCA RCA Victor Co. Inc.; New
- Shape
- Console with any shape - in general
- Notes
-
The RCA 21-CD-8926U is a 21" color TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis CTC7F, tuner KRK49B and picture tube 21CYP22. Uses Qty(2) PM 3.5" speakers and Qty(1) PM Elliptical 6" x 9" speaker. Cabinet is walnut.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 5-58, Set 399, Folder 3)
- Literature/Schematics (2)
- - - Manufacturers Literature (RCA Datasheet 1957 No. T9 Dated 8-21-57)
- Literature/Schematics (3)
- Photofact Folder, Howard W. SAMS (Set 379 folder 15-S dated 11-57)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
