21T8267U Ch= KCS113B
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1958 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 197298
-
- alternative name: RCA Manufacturing || Victor Talking Machine

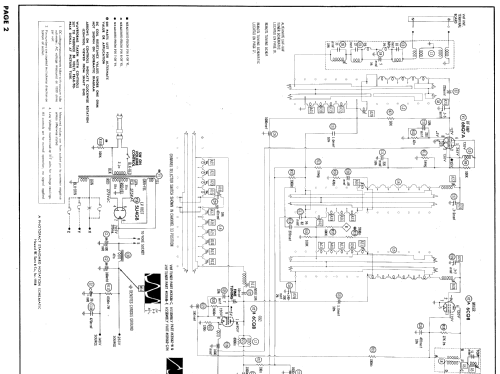

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- 6AF4A 6BQ7A 6CQ8 6AU6 6DT6 6DS5 6CF6 6CB6 6CB6 6AW8A 6CG7 6CZ5 6CG7 6DQ6A 1X2B 6AU4GTA 5U4GB 21CEP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 21T8267U Ch= KCS113B - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Notes
-
RCA model 21T8267U is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis KCS113B, VHF-tuner KRK47C, UHF-tuner KRK64A and picture tube 21CEP4.
- Literature/Schematics (1)

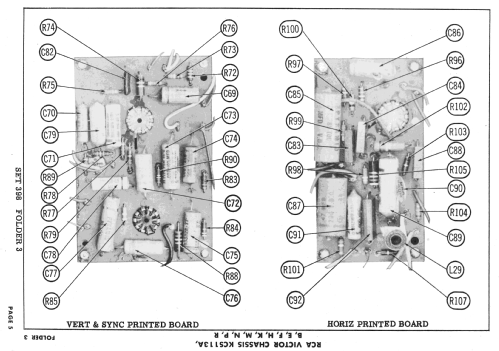

- Photofact Folder, Howard W. SAMS (Date 5-58, Set 398, Folder 3)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 375 Folder 18-S dated 10-57)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
