21VF8696 Ch= KCS108K & CTP5B
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1958 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 183736
-
- alternative name: RCA Manufacturing || Victor Talking Machine

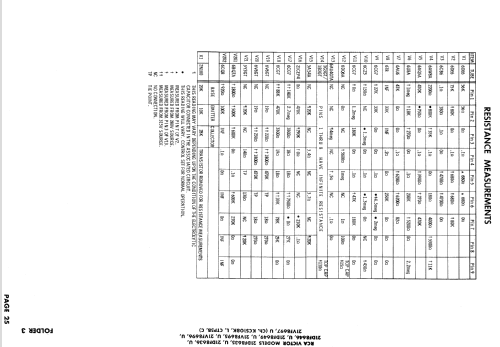

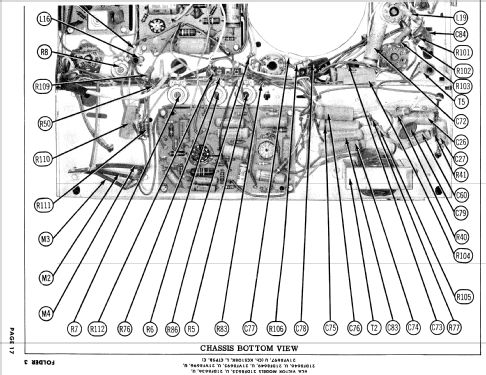

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 23
- Valves / Tubes
- 21CEP4
- Number of Transistors
- 1
- Semiconductors
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 3 Loudspeakers
- from Radiomuseum.org
- Model: 21VF8696 Ch= KCS108K & CTP5B - RCA RCA Victor Co. Inc.; New
- Notes
- 21" b/w TV with US standard VHF, Channels 2 thru 13, 14 thru 83 UHF. Chassis CTP5B is an Audio Amplifier.
