24-D-7315U Ch= KCS103T
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 265646
-
- alternative name: RCA Manufacturing || Victor Talking Machine

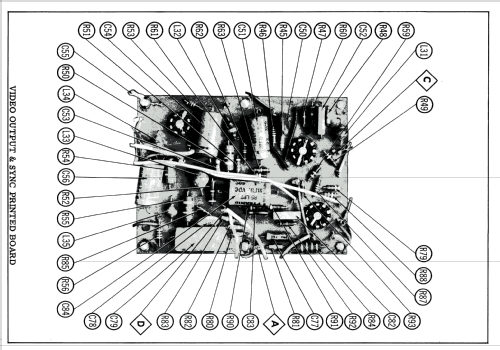

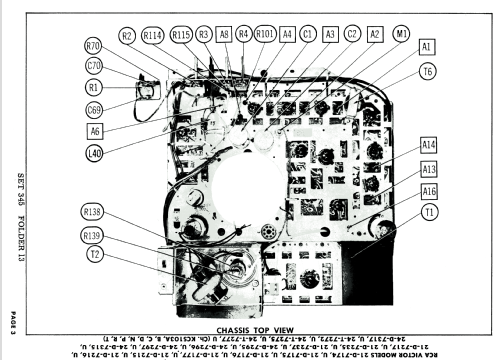

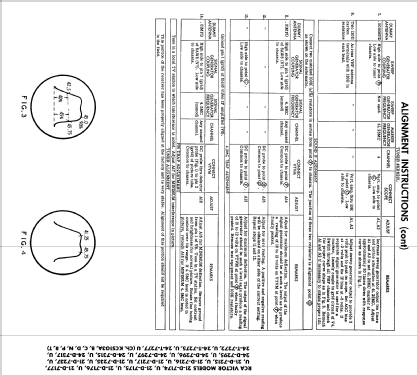

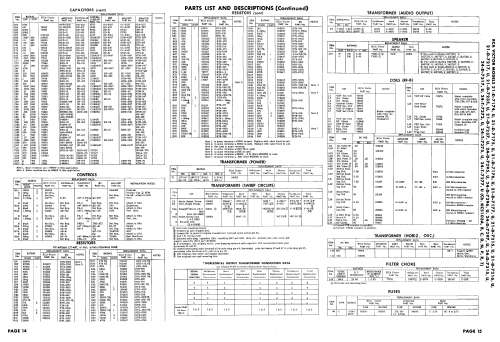

Picture From service manual.

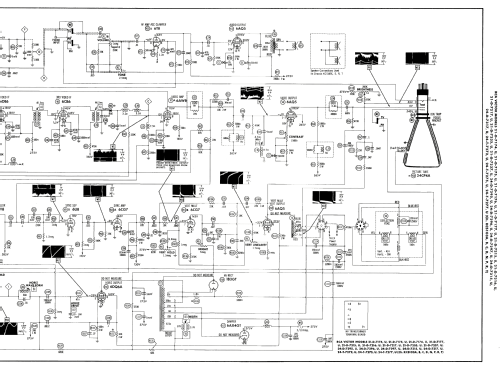

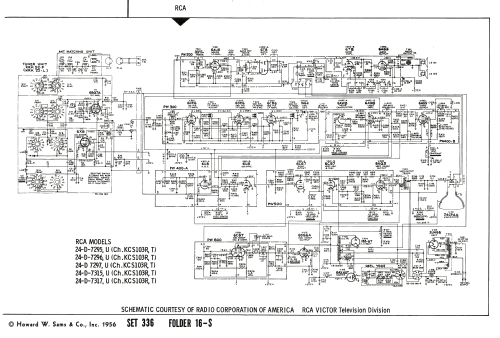

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 6AF4A 6BQ7A 6X8 6DE6 6DE6 6CB6 6AW8 6AQ5 6U8 6AU6 6T8 6AQ5 6CG7 6AQ5 6CG7 6DQ6A 6AX4GT 1B3GT 5U4GB 24CP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 24-D-7315U Ch= KCS103T - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Notes
-
The RCA VICTOR model 24-D-7315U is a 24" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis KCS103T and picture tube 24CP4A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 345 Folder 13 date 1 - 57)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 336 Folder 16-S dated 1956)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
