2ES38 Ch= RS-142
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1952
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 86146
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Beitman

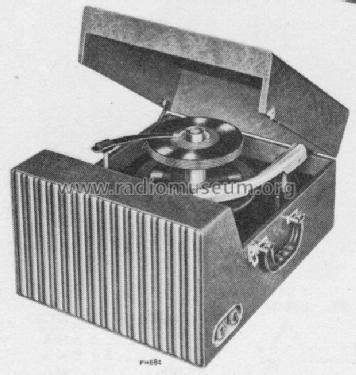

Picture from RCA Service Notes
RCA Victor Sales Brochure
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification; 2 AF stage(s)
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 1.2 W (unknown quality)
- from Radiomuseum.org
- Model: 2ES38 Ch= RS-142 - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 16.5 x 19 x 9.875 inch / 419 x 483 x 251 mm
- Notes
- The RCA 2ES38 is a portable AC operated 3 tube Record Player with 3 Speed Automatic Record Changer. Has Qty(1) PM 8" speaker. Uses Record Changer 930409-5, with speeds of 33-1/3, 45 or 78 RPM. Record capacity is up to Qty(14) 7" or Qty(12) 10" or Qty(10) 12" or Qty(10) 10" and 12" intermixed.
- Net weight (2.2 lb = 1 kg)
- 24 lb (24 lb 0 oz) / 10.896 kg
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 12, 1952
- Literature/Schematics (2)
- RCA Victor Service Notes "Red Book" Series (Volume VIII 1952, Page 17)
- Author
- Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
