2-X-621 Ch= RC1085B

2-X-621 Ch= RC1085B; RCA RCA Victor Co. (ID = 1233839) Radio

2-X-621 Ch= RC1085B; RCA RCA Victor Co. (ID = 1233840) Radio

2-X-621 Ch= RC1085B; RCA RCA Victor Co. (ID = 1233841) Radio

2-X-621 Ch= RC1085B; RCA RCA Victor Co. (ID = 1233842) Radio

2-X-621 Ch= RC1085B; RCA RCA Victor Co. (ID = 164843) Radio

2-X-621 Ch= RC1085B; RCA RCA Victor Co. (ID = 215564) Radio
2-X-621 Ch= RC1085B; RCA RCA Victor Co. (ID = 102321) Radio 2-X-621 Ch= RC1085B; RCA RCA Victor Co. (ID = 102322) Radio
2-X-621 Ch= RC1085B; RCA RCA Victor Co. (ID = 802093) Radio 2-X-621 Ch= RC1085B; RCA RCA Victor Co. (ID = 1233838) Radio
Use red slider bar for more.
2-X-621 Ch= RC1085B; RCA RCA Victor Co. (ID = 102321) Radio
RCA RCA Victor Co.: 2-X-621 Ch= RC1085B [Radio] ID = 102321 400x325
Select picture or schematic to display from thumbnails on the right and click for download.
For model 2-X-621 Ch= RC1085B, RCA (RCA Victor Co. Inc.); New York (NY):

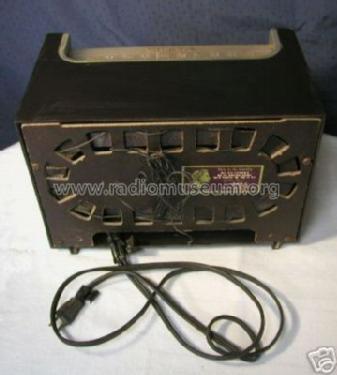

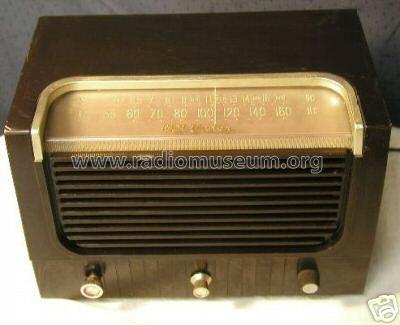

RCA 2-X-621 copy from Ebay seller auctionfinds325

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12BA6 12BE6 12BA6 12SQ7 35L6GT 35Z5
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 0.85 W (unknown quality)
from Radiomuseum.org Model: 2-X-621 Ch= RC1085B - RCA RCA Victor Co. Inc.; New
Material Plastics (no bakelite or catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 11.75 x 8.625 x 7.5 inch / 298 x 219 x 191 mm
Notes The RCA 2-X-621 is an AC/DC operated 6 tube AM/SW receiver. AM Band Tuning Range: 540 - 1600kHz. SW Band Tuning Range: 5.8 - 18.0MHz. Cabinet color is Maroon. Uses Qty(1) PM 4" speaker. Has external Phonograph input. Uses Qty(2) #1490 bayonet dial lamps wired in series.
Net weight (2.2 lb = 1 kg) 3.6 kg / 7 lb 14.9 oz (7.93 lb)
External source of data Ernst Erb
Source of data Machine Age to Jet Age II

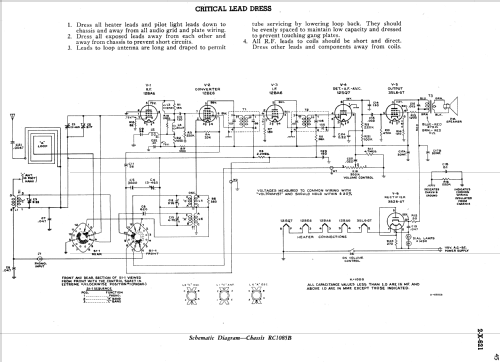

Circuit diagram reference Beitman Radio Diagrams Vol. 13, 1953
Literature/Schematics (1) Rider's Perpetual, Volume 23 (last) = covering up to 1954
Literature/Schematics (2) RCA Victor Service Notes "Red Book" Series (Volume VIII 1952, Page 43)
