3RC14 "The Bulletin" Ch= RC-1210C

RCA (RCA Victor Co. Inc.); New York (NY)

  • Year
  • 1962/1963
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 90311
    • alternative name: RCA Manufacturing || Victor Talking Machine

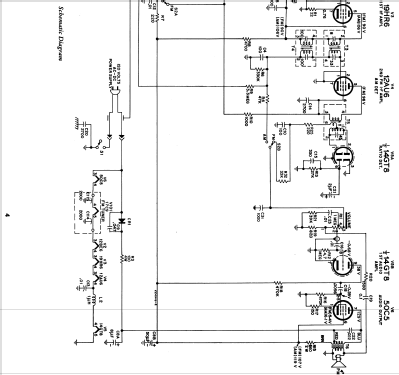

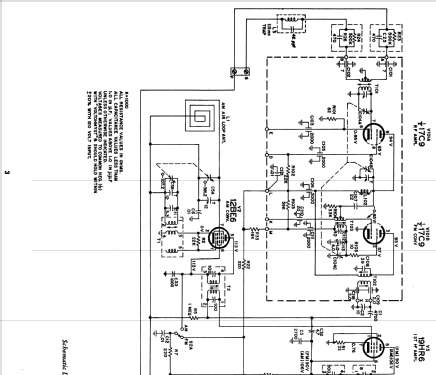

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • AC/DC-set / Either AC: 50 to 60 cycles, 105 to 125V or DC: 105 to 125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 2.25 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 3RC14 "The Bulletin" Ch= RC-1210C - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 11.125 x 6.125 x 5.125 inch / 283 x 156 x 130 mm
  • Notes
  • The RCA 3RC14 is an AC/DC operated 6 tube AM/FM receiver.  The AM frequency tuning range is 535 to 1620kHz and the FM frequency tuning range is 87.5 to 108.5MHz.  Uses silicon rectifier in power supply.

    The following models use the same chassis and schematic:

    Model Cabinet
    3RC11 Black/Front Aluminum
    3RC14 Expresso/Frost Aluminum



  • Net weight (2.2 lb = 1 kg)
  • 4 lb (4 lb 0 oz) / 1.816 kg
  • Circuit diagram reference

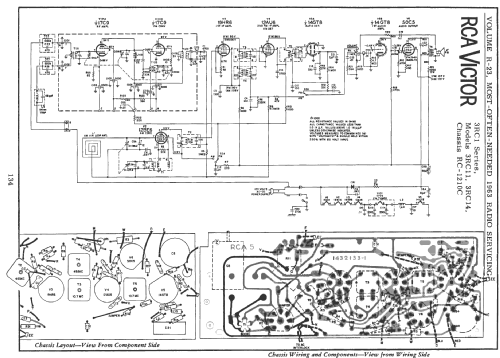

  • Beitman Radio Diagrams Vol. 23, 1963
  • Literature/Schematics (1)
  • - - Manufacturers Literature (RCA Radio Service Data Datasheet - File 1962 No. 14)
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
