3RH10 Ch= RC-1199D
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1962 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 90286
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Q = ebay objnr: 220099468016
Ebay Seller wentworth Item 350557569622
Ebay Seller wentworth Item 350557569622
Ebay Seller wentworth Item 350557569622
Ebay Seller wentworth Item 350557569622
Vista de conjunto en original "Gift Box"

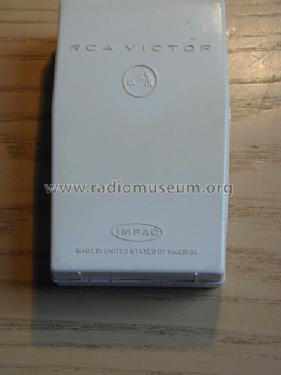

Vista perfil.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 4.2 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 3RH10 Ch= RC-1199D - RCA RCA Victor Co. Inc.; New
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 60 x 100 x 30 mm / 2.4 x 3.9 x 1.2 inch
- Notes
- RCA Victor model 3RH10 has a permanent magnetic speaker with 100 Ohms center tapped voice coil.
- Net weight (2.2 lb = 1 kg)
- 0.2 kg / 0 lb 7 oz (0.441 lb)
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 23, 1963
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
- Other Models
-
Here you find 5126 models, 3229 with images and 4161 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
Collections
The model 3RH10 is part of the collections of the following members.
Forum contributions about this model: RCA RCA Victor Co.: 3RH10 Ch= RC-1199D
Threads: 1 | Posts: 1
Para este modelo de radio, que originalmente usa una bateria de 4 volts "RCA VS-149", la misma tiene un tamaño igual a una pila "AA", para su reemplazo, ya que no se fabrica más, uso con excelente resultado al ser del mismo tamaño y tension compatible una bateria recargable "UltraFire 14500 de 3,7 volts", con la ventaja de ser recargable, cargada a full tiene una tension de 4 volts.
Enrique Palacio, 06.Jan.16
