• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1950/1951

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 82612

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 12AV6 50B5 35W4

• Main principle
• Audio-Amplification; 2 AF stage(s)

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1 W (1.25 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 45-EY-15 Ch= RS-132H - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 9.75 x 7.625 x 9.625 inch / 248 x 194 x 244 mm

• Notes

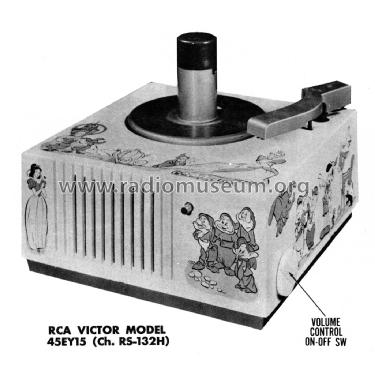

• The RCA 45-EY-15 is an AC operated 3 tube phonograph with mono amplifier and speaker.  The turntable is a 45 RPM, model RP-168, which holds up to ten 7 inch fine groove records. Uses crystal pickup 74067 with medium output voltage.

• Mentioned in

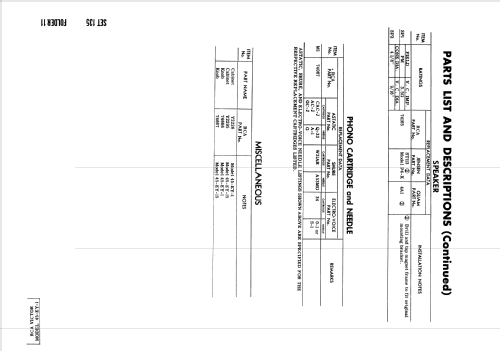

• Photofact Folder, Howard W. SAMS (Date 6-1951, Set 135, Folder 11)

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 11, 1951 (Page 105)

• Literature/Schematics (2)

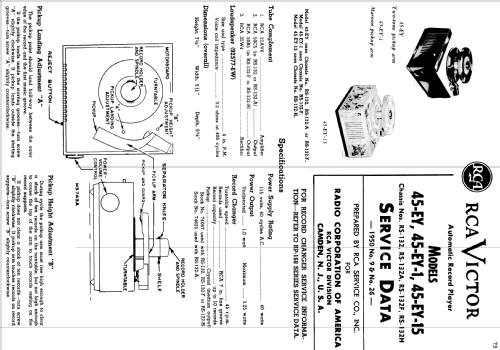

• RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data Volume VI 1950 Pages 73-76)

• Author
• Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
