• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1952 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 86148

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12SC7 35L6GT 35L6GT 35Z5GT

• Main principle
• 3 AF stage(s)

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 inch = 19.1 cm

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 45-EY-4 Ch= RS 140 - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, low profile (big size).

• Notes

• RCA Victor model 45-EY-4 is an AC operated audio amplifier with 45 RPM automatic record changer. Push Pull Output.



• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 12, 1952

• Literature/Schematics (2)

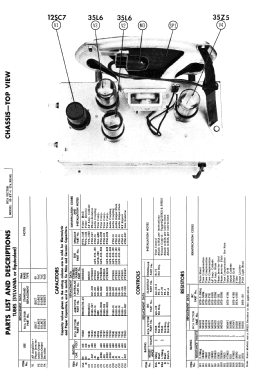

• Photofact Folder, Howard W. SAMS (Set 173, folder 11, dated 7-52)

• Author
• Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
