45-HY-4 Ch= RS-140B
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1955 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 138535
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- from Radiomuseum.org
- Model: 45-HY-4 Ch= RS-140B - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Notes

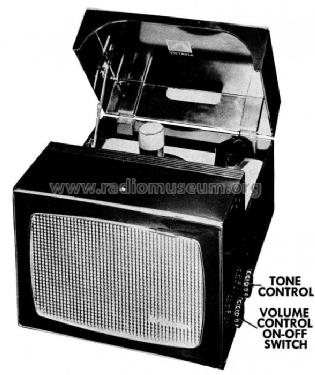

- The RCA Modell 45-HY-4 is an AC Operated 4 Tube Phono Amplifier with 45 RPM Automatic Record Changer.
- Literature/Schematics (1)

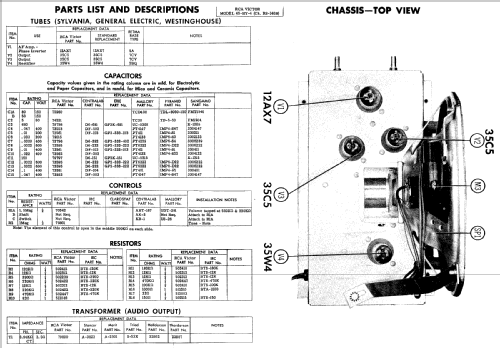

- Photofact Folder, Howard W. SAMS (Date 4-55, Set 275, Folder 13)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
