For model 4RH12, RCA (RCA Victor Co. Inc.); New York (NY):
By Courtesy of Ebay Seller pittsburgh_clockshop

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1961 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 4 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 4RH12 - RCA RCA Victor Co. Inc.; New
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 2.5 x 4 x 1.25 inch / 64 x 102 x 32 mm
Notes

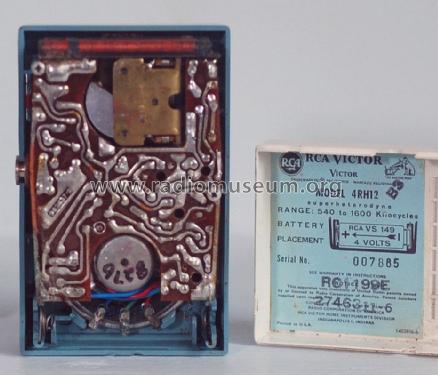

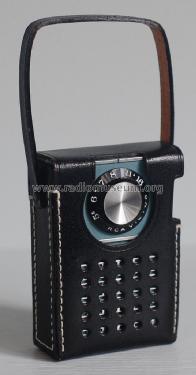

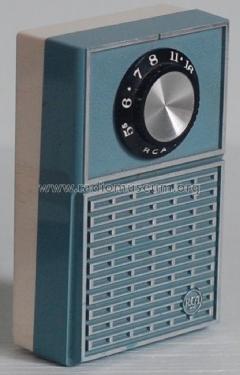

RCA AM Pocket Radio Model 4RH12 with additional leather carrying case with handle. Range 540 to 1600 Kilocycles.

Uses 4-Volt battery RCA type VS-149.

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 551, Folder 9, Date 1961)

Model page created by Franz Scharner. See "Data change" for further contributors.
