Radiola 516 Ch= RC-1001-C

RCA (RCA Victor Co. Inc.); New York (NY)

  • Year
  • 1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 53498
    • alternative name: RCA Manufacturing || Victor Talking Machine

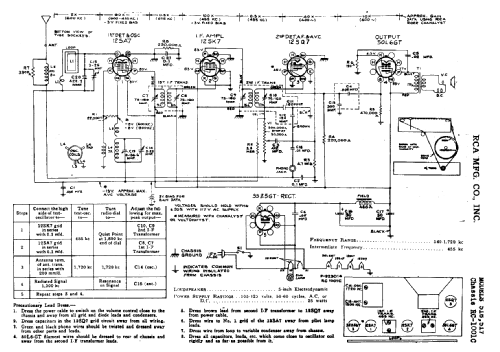

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: Radiola 516 Ch= RC-1001-C - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Notes
  • F. range: 540-1720 KC.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 13 = 1942 and before
  • Literature/Schematics (1)
  • RCA Victor Instruments Service Notes 1941-1942
