56X Ch= RC-1011; RCA RCA Victor Co. (ID = 1837969) Radio

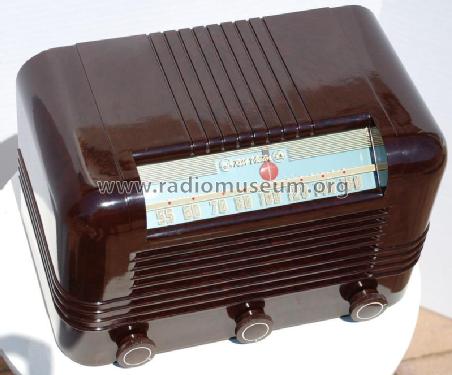

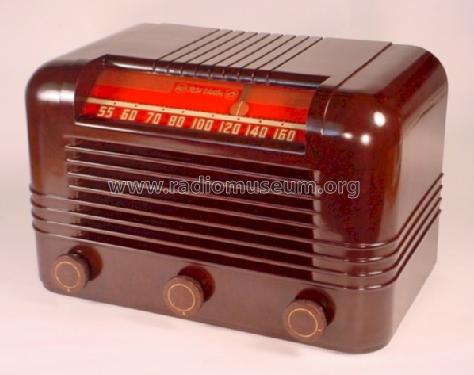

RCA RCA Victor Co.: 56X Ch= RC-1011 [Radio] ID = 1837969 800x663
Select picture or schematic to display from thumbnails on the right and click for download.
For model 56X Ch= RC-1011 1st Production, RCA (RCA Victor Co. Inc.); New York (NY):
American Radio Design Greg Mercurio

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1945 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SG7 12SK7 12SQ7 35L6GT 12J5GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: 56X Ch= RC-1011 [1st Production] - RCA RCA Victor Co. Inc.; New

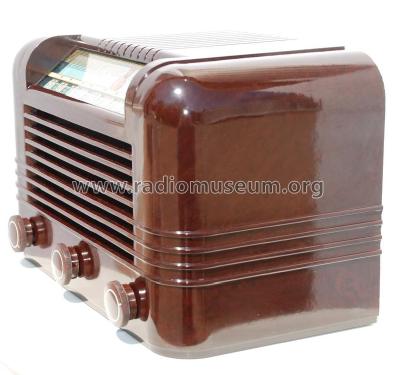

Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 12.2 x 8 x 7.5 inch / 310 x 203 x 191 mm
Notes Brown plastic. 1st Production chassis.
Net weight (2.2 lb = 1 kg) 7 lb 4 oz (7.25 lb) / 3.292 kg
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 17 = 1948 and before
Mentioned in RCA Victor Instruments Service Notes 1945

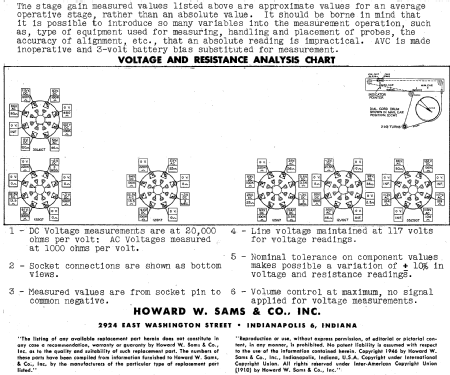

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Dat 8-48, set 1, folder 463-23)
Literature/Schematics (2) RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data 1943-1946, Page 45)


All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
