• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1945

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 53531

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SG7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

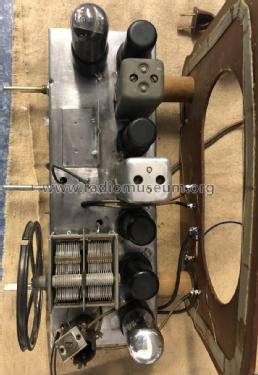

• Model: 56X10 Ch= RC-1023B - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 14.3 x 8.2 x 8.2 inch / 363 x 208 x 208 mm

• Notes
• Pilot lamp: Mazda Nº51, 6.8 V, 0.2 amp.
  See also Sams Photofact Folders, Dat 6-46, set 1, folder 621-12.

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition (Beitman Radio Diagrams 1946)

• Literature/Schematics (1)
• Machine Age to Jet Age III (RCA Victor Instruments Service Notes 1945)

• Literature/Schematics (2)
• RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data 1943-1946, Page 47)
