5Q31XT Ch= RC-1054

5Q31XT Ch= RC-1054; RCA RCA Victor Co. (ID = 19968) Radio

5Q31XT Ch= RC-1054; RCA RCA Victor Co. (ID = 19969) Radio
5Q31XT Ch= RC-1054; RCA RCA Victor Co. (ID = 1843843) Radio 5Q31XT Ch= RC-1054; RCA RCA Victor Co. (ID = 1843844) Radio
5Q31XT Ch= RC-1054; RCA RCA Victor Co. (ID = 1843845) Radio 5Q31XT Ch= RC-1054; RCA RCA Victor Co. (ID = 1843848) Radio

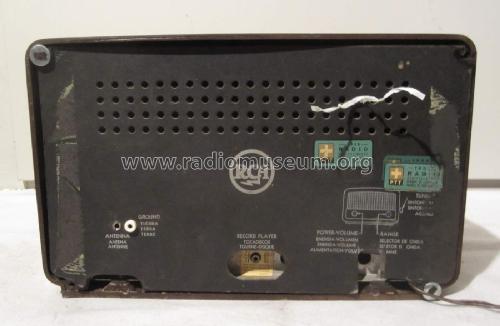

5Q31XT Ch= RC-1054; RCA RCA Victor Co. (ID = 1843851) Radio 5Q31XT Ch= RC-1054; RCA RCA Victor Co. (ID = 1843854) Radio
5Q31XT Ch= RC-1054; RCA RCA Victor Co. (ID = 353986) Radio
Use red slider bar for more.

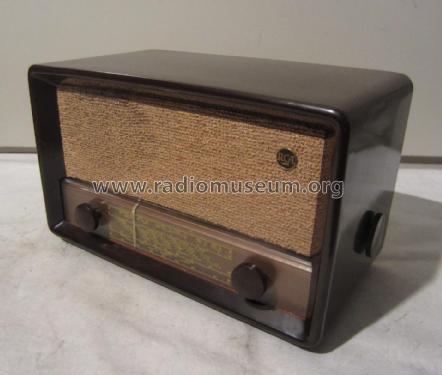

5Q31XT Ch= RC-1054; RCA RCA Victor Co. (ID = 1843843) Radio
RCA RCA Victor Co.: 5Q31XT Ch= RC-1054 [Radio] ID = 1843843 1400x1187
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5Q31XT Ch= RC-1054, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 35L6G 35Z5G
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 5Q31XT Ch= RC-1054 - RCA RCA Victor Co. Inc.; New
Material Bakelite case
Dimensions (WHD) 370 x 230 x 195 mm / 14.6 x 9.1 x 7.7 inch
Notes
Price in first year of sale 365.00 SFR
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
