5Q32

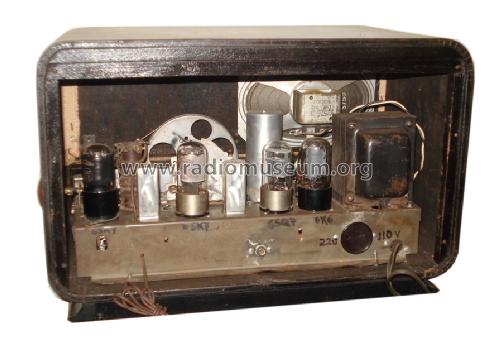

5Q32; RCA Victor Radio S.A (ID = 762548) Radio 5Q32; RCA Victor Radio S.A (ID = 762549) Radio
Use red slider bar for more.
5Q32; RCA Victor Radio S.A (ID = 762548) Radio
RCA Victor Radio S.A: 5Q32 [Radio] ID = 762548 821x613
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5Q32, RCA Victor Radio S.A., São Paulo

Country:  Brazil
Manufacturer / Brand:  RCA Victor Radio S.A., São Paulo
Year: 1950 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6SA7 6SK7 6SQ7 6K6 6X4
schematic requested
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 5Q32 - RCA Victor Radio S.A., São
Material Wooden case
Shape Tablemodel, with any shape - general.

Model page created by Meyer Rochwerger. See "Data change" for further contributors.



All listed radios etc. from RCA Victor Radio S.A., São Paulo
Here you find 14 models, 9 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
RCA Victor Radio S.A: 5Q32
Threads: 1 | Posts: 1
Hits: 2871     Replies: 0
rca: 5Q32;
Carlos Lazarini
07.May.10
  1

This radio has a similar cabinet to RCA 5Q31X from USA, but a different tube complement.
