For model 66X8 Ch= RC-1038A, RCA (RCA Victor Co. Inc.); New York (NY):
RCA 66X8 copy from Ebay seller catalinradio

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SG7 12SA7 12SK7 12SQ7 35L6G 35Z5G
Main principle Superhet with RF-stage; ZF/IF 455 kHz

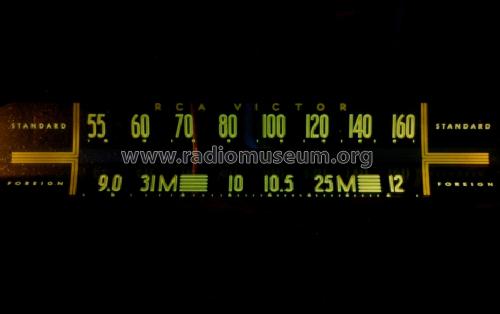

Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 6 inch = 15.2 cm
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: 66X8 Ch= RC-1038A - RCA RCA Victor Co. Inc.; New
Material Catalin (a brand name for a thermosetting polymer popular in the 1930s and 1940s - a phenol formaldehyde resin - like Bakelite, but a two-stage process with a lot of work afterwards).
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 14.3 x 8.3 x 7.58 inch / 363 x 211 x 193 mm

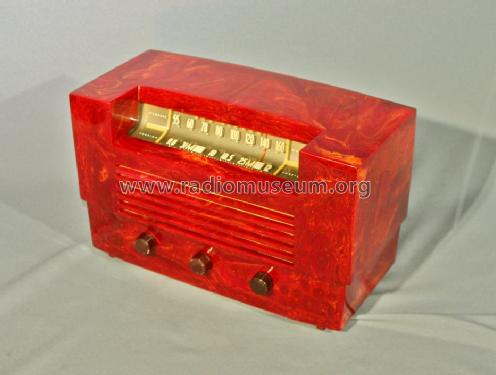

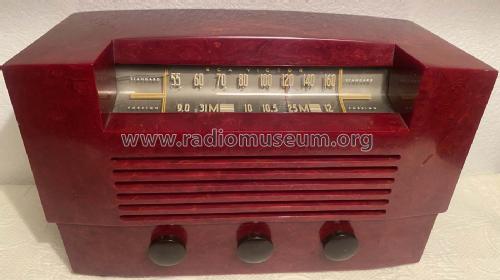

Notes red swirl Catalin
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

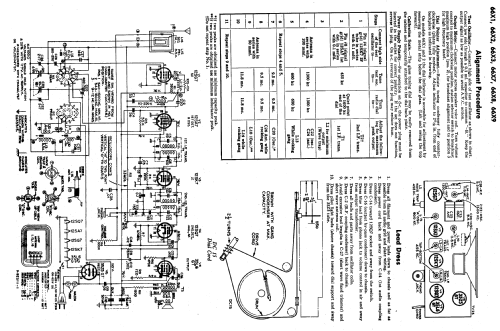

Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition (Rider´s 18)

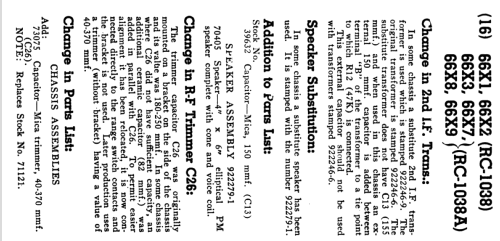

Literature/Schematics (1) RCA Victor Instruments Service Notes 1946
Literature/Schematics (2) Machine Age to Jet Age II (page 237.)
