• Year
  • 1955 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 82007
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

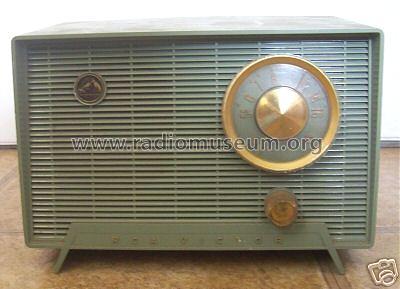

  • Model: 6-X-5 Nipper Ch=RC-1157 - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 16, 1956
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
