For model 6-X-7B Ch= RC-1128B, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110 - 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 6-X-7B Ch= RC-1128B - RCA RCA Victor Co. Inc.; New
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 11.5 x 6.25 x 7 inch / 292 x 159 x 178 mm
Notes The RCA Modell 6-X-7B is an AC/DC Operated AM Superheterodyne Receiver.
Price in first year of sale 25.00 $

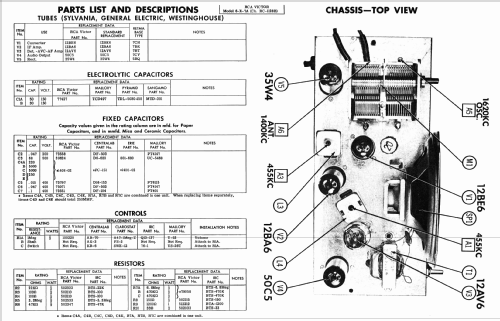

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 1-56, Set 303, Folder 9)

Model page created by Egon Penker. See "Data change" for further contributors.
