6-X-8C "The Wilshire" Ch= RC-1146

6-X-8C 'The Wilshire' Ch= RC-1146; RCA RCA Victor Co. (ID = 1588720) Radio

6-X-8C 'The Wilshire' Ch= RC-1146; RCA RCA Victor Co. (ID = 1588721) Radio

6-X-8C 'The Wilshire' Ch= RC-1146; RCA RCA Victor Co. (ID = 1588722) Radio

6-X-8C 'The Wilshire' Ch= RC-1146; RCA RCA Victor Co. (ID = 1588723) Radio
6-X-8C 'The Wilshire' Ch= RC-1146; RCA RCA Victor Co. (ID = 1399739) Radio 6-X-8C 'The Wilshire' Ch= RC-1146; RCA RCA Victor Co. (ID = 1399736) Radio
6-X-8C 'The Wilshire' Ch= RC-1146; RCA RCA Victor Co. (ID = 1399741) Radio 6-X-8C 'The Wilshire' Ch= RC-1146; RCA RCA Victor Co. (ID = 1400279) Radio
6-X-8C 'The Wilshire' Ch= RC-1146; RCA RCA Victor Co. (ID = 1400280) Radio 6-X-8C 'The Wilshire' Ch= RC-1146; RCA RCA Victor Co. (ID = 1400281) Radio
6-X-8C 'The Wilshire' Ch= RC-1146; RCA RCA Victor Co. (ID = 1400282) Radio 6-X-8C 'The Wilshire' Ch= RC-1146; RCA RCA Victor Co. (ID = 1588724) Radio
Use red slider bar for more.
6-X-8C 'The Wilshire' Ch= RC-1146; RCA RCA Victor Co. (ID = 1399739) Radio
RCA RCA Victor Co.: 6-X-8C "The Wilshire" Ch= RC-1146 [Radio] ID = 1399739 640x532
Select picture or schematic to display from thumbnails on the right and click for download.
For model 6-X-8C 'The Wilshire' Ch= RC-1146, RCA (RCA Victor Co. Inc.); New York (NY):
Greg Mercurio American Radio Design

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1955 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / AC: 50 to 60 cycles, 105 to 125V or DC: 105 to 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 1 W (1.5 W max.)
from Radiomuseum.org Model: 6-X-8C "The Wilshire" Ch= RC-1146 - RCA RCA Victor Co. Inc.; New
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 10.75 x 6.375 x 6 inch / 273 x 162 x 152 mm
Notes

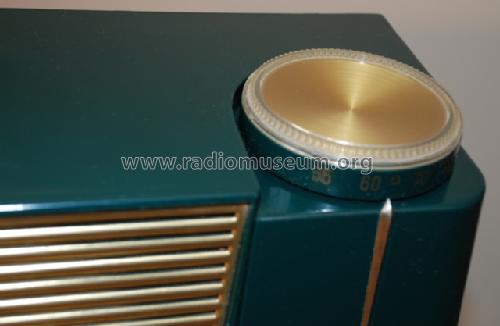

The RCA 6-X-8C is an AC/DC operated 5 tube BC band receiver. BC band tuning range: 540 to 1600 kHz. Has built-in loop antenna mounted on rear panel. Cabinet color is forest green. Has phono input jack located on rear of chassis, along with a slide switch used to select either radio or phono operation.

The following models use the same schematic and cabinet but have different cabinet colors:

Model Number Cabinet Color
6-X-8A Black
6-X-8B Cherry Red
6-X-8C Forest Green



RCA manufactured the same style radio with different model numbers but the same chassis. Similar to 4X551 through 4X555 series.

Net weight (2.2 lb = 1 kg) 5 lb (5 lb 0 oz) / 2.270 kg
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 15, 1955 (Vol 15, 1955, p.76)

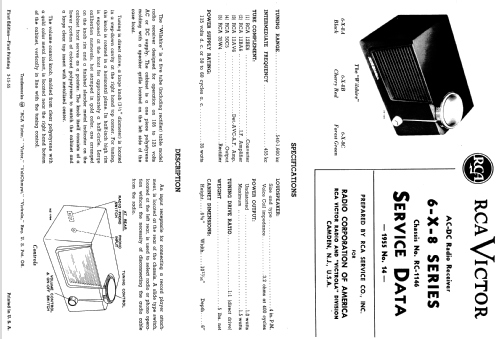

Literature/Schematics (2) - - Manufacturers Literature (RCA Datasheet 1955 No. 14)

Model page created by Greg Mercurio. See "Data change" for further contributors.
