• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 53716

• • alternative name: RCA Manufacturing || Victor Talking Machine

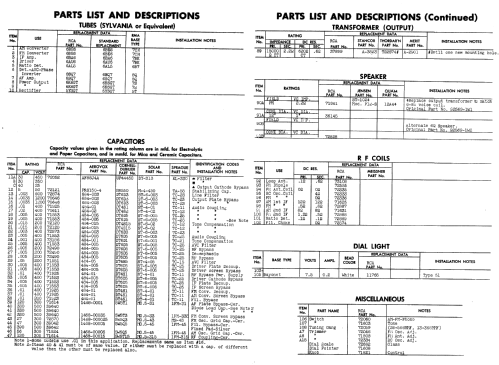

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6BE6 6BE6 6BA6 6AU6 6AL5 6SQ7 6SQ7 6K6GT 6K6GT 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 710V2 Ch= RC-613A - RCA RCA Victor Co. Inc.; New

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 37.5 x 35 x 16.7 inch / 953 x 889 x 424 mm

• Notes
• Push Pull-Output

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 18 = 1949 and before

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 09, 1949

• Literature/Schematics (4)
• Photofact Folder, Howard W. SAMS (Set 40, Date 5/48, Folder 4810-15)

• Other Models

• Here you find 5118 models, 3224 with images and 4151 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
