730-TV1 Ch= KCS27-1

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1948 ?

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 120521

• • alternative name: RCA Manufacturing || Victor Talking Machine

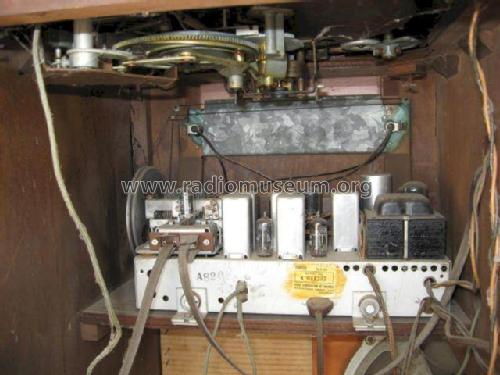

• Picture

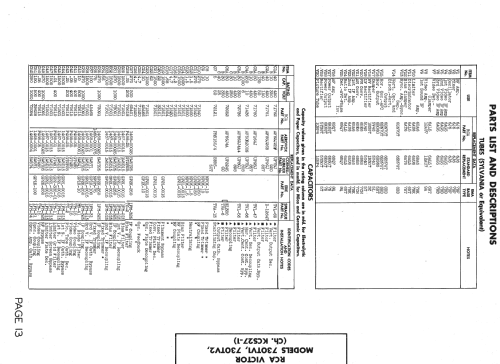

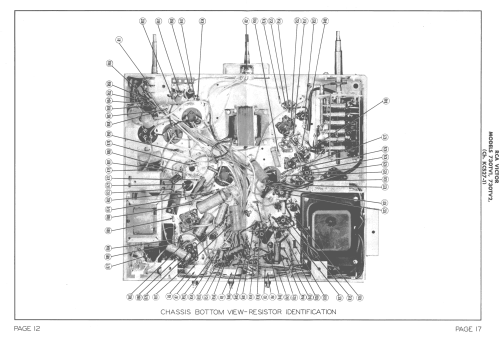

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 30

• Valves / Tubes
• 6J6 6J6 6J6 6AG5 6AG5 6AG5 6AL5 12AU7 6BA6 6AU6 6AL5 6AT6 6SN7GT 6SN7GT 6SN7GT 6BG6G 5V4G 1B3GT 5U4G 6BE6 6BE6 6BA6 6AU6 6AL5 6SQ7 6SQ7 6K6GT 6K6GT 5Y3GT 10BP4

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 730-TV1 Ch= KCS27-1 - RCA RCA Victor Co. Inc.; New

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 35 x 40 x 21.5 inch / 889 x 1016 x 546 mm

• Notes

• 10" round CRT TV with MW/FM radio and US standard VHF drum tuner.
  AM-FM-Phono-TV Receiver
  TV Channels 1 thru 13 (44-88MC, 174-216MC)
  AM 540-1600KC    FM 88-108MC

  12AU7 was introduced in 1948, not before.



• Source of data
• -- Collector info (Sammler)

• Mentioned in
• Photofact Folder, Howard W. SAMS (Vol.7 9/49 4918-7 Set #70 Folder 7)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
