7-BT-10K Ch= RC-1156; RCA RCA Victor Co. (ID = 593040) Radio
RCA RCA Victor Co.: 7-BT-10K Ch= RC-1156 [Radio] ID = 593040 420x325
Select picture or schematic to display from thumbnails on the right and click for download.
For model 7-BT-10K Ch= RC-1156, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7:
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 7-BT-10K Ch= RC-1156 - RCA RCA Victor Co. Inc.; New
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 6.5 x 10 x 3.75 inch / 165 x 254 x 95 mm
Notes The model 7-BT-10K with chassis RC-1156 is RCA's second transistor radio after the 7-BT-9J. Transistors: 235, 2 of 234 (IF) and 4 of 2N109 (AF and push-pull output) plus diode 1N295.
4" x 6" PM elliptical speaker.

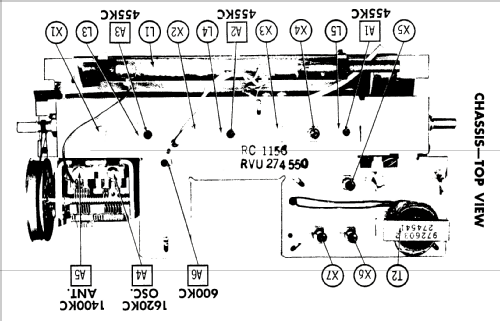

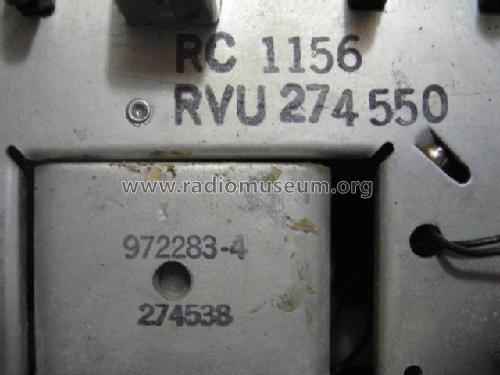

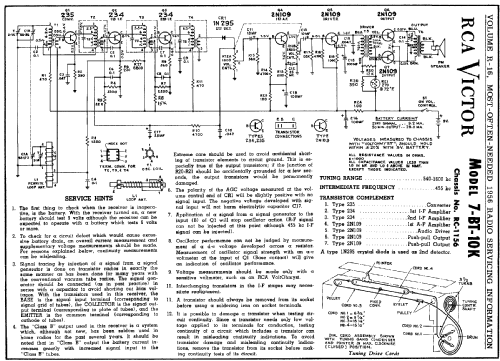

Circuit diagram reference Beitman Radio Diagrams Vol. 16, 1956
Mentioned in The Collector's Guide To Antique Radios 2. Edition
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 9-56, Set 329, Folder 10)
Literature/Schematics (2) Antique Radio Magazine - Italy, Club Antique Radio Magazine (n.149 (maggio-giugno 2019) pag.42-47)

Model page created by Ernst Erb. See "Data change" for further contributors.
