• Year
  • 1956 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 263801
    • alternative name: RCA Manufacturing || Victor Talking Machine

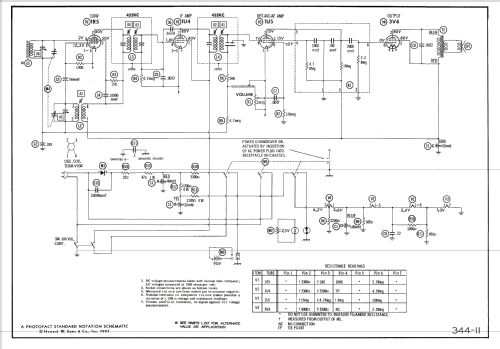

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Batteries (any type) / AC/DC 110-120 / 7.5 & 90 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 7-BX-6E Ch= 1161A - RCA RCA Victor Co. Inc.; New
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 10.5 x 8 x 3.5 inch / 267 x 203 x 89 mm
  • Notes
  • Selenium Rectifier.

  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
