7-EY-1JF Ch= RS-155

RCA (RCA Victor Co. Inc.); New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1954/1955
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 268202
    • alternative name: RCA Manufacturing || Victor Talking Machine

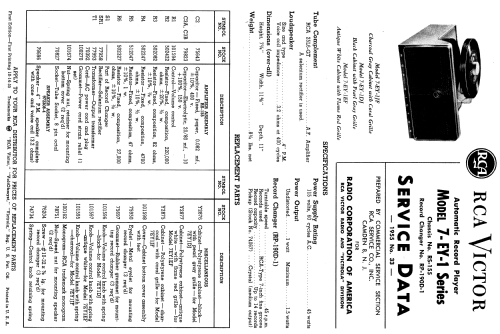

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Main principle
  • Audio-Amplification; 1 AF stage(s)
  • Wave bands
  • - without
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 1 W (1.5 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 7-EY-1JF Ch= RS-155 - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 11.375 x 7.25 x 11 inch / 289 x 184 x 279 mm

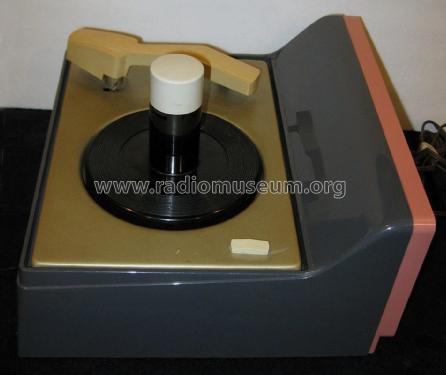

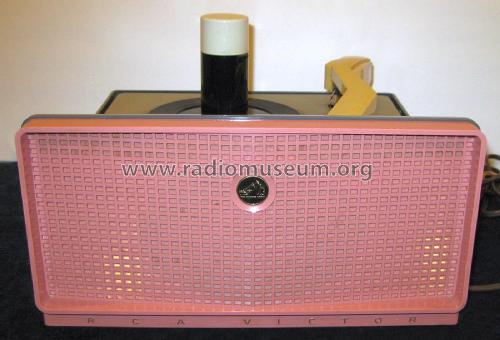

  • Notes

  • The RCA 7-EY-1JF is an AC operated 1 tube automatic record player.  Plays 45 RPM 7 inch records.  Has Selenium Rectifier.  Uses RCA Record Changer RP-190D-1, which has a record capacity of holding up to 14 records.  Has crystal pickup.

    The following models use the same schematic and chassis but have different cabinet colors:

    Model Cabinet Colors
    7-EY-1JF Charcoal Gray Cabinet with Coral Grille
    7-EY-1DJ Black Cabinet with Pearl Gray Grille
    7-EY-1EF Antique White Cabinet with Flame Red Grille



  • Net weight (2.2 lb = 1 kg)
  • 8.25 lb (8 lb 4 oz) / 3.746 kg
  • Literature/Schematics (1)
  • - - Manufacturers Literature (RCA Victor Service Data 1955 No. 33 First Edition 10-14-55)
  • Author
  • Model page created by Noemi Erb. See "Data change" for further contributors.
