• Year
  • 1956 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 81992
    • alternative name: RCA Manufacturing || Victor Talking Machine

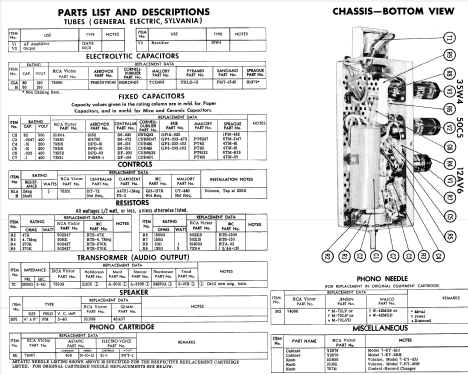

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • from Radiomuseum.org
  • Model: 7-EY-2JJ Ch=RS-155A - RCA RCA Victor Co. Inc.; New
  • Notes
  • Record Changer RP-190D-2.

    Loudspeaker 4" x 6"

  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 16, 1956
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
