7-HF-5 Ch= RS-158

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1956 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 83130

• • alternative name: RCA Manufacturing || Victor Talking Machine

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 12AX7 50C5 50C5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: 7-HF-5 Ch= RS-158 - RCA RCA Victor Co. Inc.; New

• Shape
• Console, Highboy (legs > 50 %).

• Dimensions (WHD)
• 20 x 28 x 17 inch / 508 x 711 x 432 mm

• Notes
• Push-pull output stage, Selenium Rectifier.
  Speakers: 1 x 6.5" and 2 x 3.5"

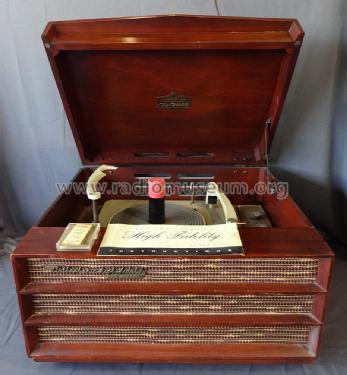

  The RCA Modell 7-HF-5 is an AC Operated 3 Tube Phono Amplifier with 4 Speed Automatic Record Changer.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 17, 1957
