• Year
  • 1937
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 53781
    • alternative name: RCA Manufacturing || Victor Talking Machine

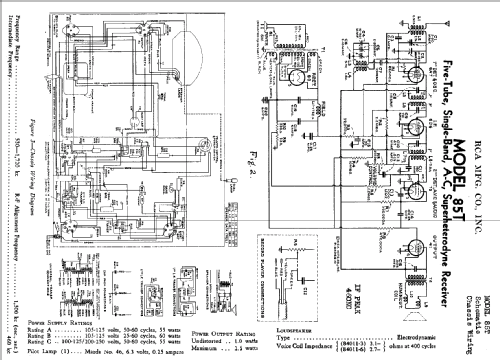

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 469 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125/200/250 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
  • Power out
  • 1 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 85T2 - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Notes
  • Model 85T2 is an upright table model employing a chassis similar to Model 85T.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 17 = 1948 and before
  • Literature/Schematics (2)
  • RCA Victor Service Notes for 1937 (RCA Redbook 1937).
