• Year
  • 1949
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 53813
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 67.5, 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 0.05 W (unknown quality)
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org

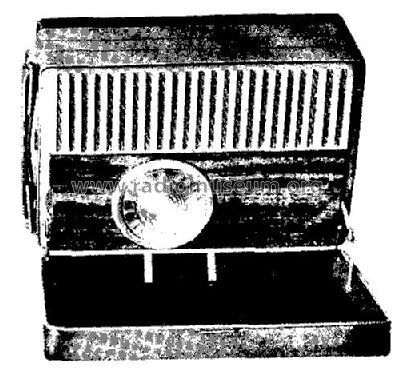

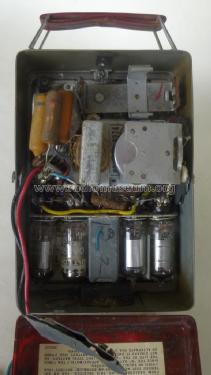

  • Model: 8B43 Ch= RC-1069B - RCA RCA Victor Co. Inc.; New
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 6.25 x 3.4 x 4.4 inch / 159 x 86 x 112 mm
  • Notes
  • color red Color=Red
    2" x 3" PM elliptical speaker
  • Net weight (2.2 lb = 1 kg)
  • 1.7 kg / 3 lb 11.9 oz (3.744 lb)
  • External source of data
  • Ernst Erb

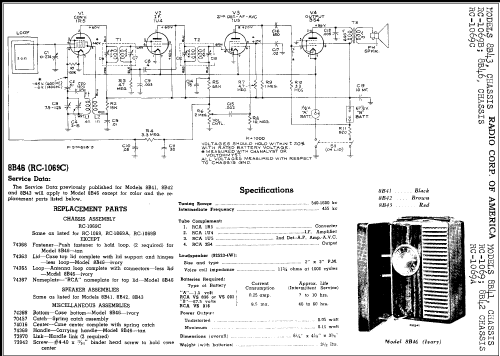

  • Circuit diagram reference
  • Rider's Perpetual, Volume 19 = 1949 and before
