• Year
  • 1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 53817
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz
  • Tuned circuits
  • 8 AM circuit(s)
  • Wave bands
  • Broadcast, Short Wave(s) and Police.
  • Power type and voltage
  • Storage and/or dry batteries / 2.5 & 3x45 & 7.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
  • Power out
  • 1.2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 8BT - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 17 x 22.125 x 9.25 inch / 432 x 562 x 235 mm
  • Net weight (2.2 lb = 1 kg)
  • 28 lb (28 lb 0 oz) / 12.712 kg
  • External source of data
  • Ernst Erb

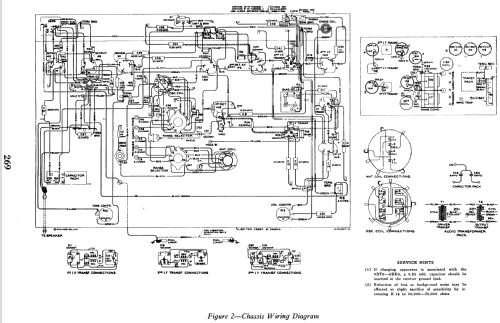

  • Circuit diagram reference
  • Rider's Perpetual, Volume 8 = 1937 and before
