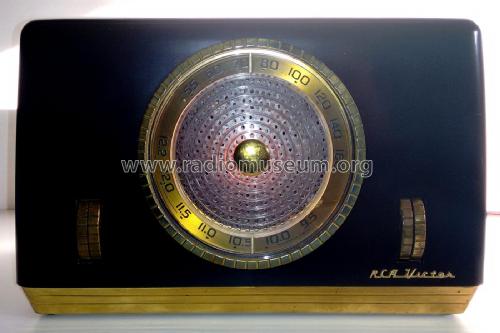

8X681 Ch= RC-1061
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1948 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 53938
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 1.1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 8X681 Ch= RC-1061 - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 12.7 x 8 x 7.2 inch / 323 x 203 x 183 mm
- Notes
- Dial lamp: type Nº47, 6.3V, 0.15 amp.
Color=Maroon
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 19 = 1949 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 09, 1949 (RCA Victor Instruments Service Notes 1948)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set #65 Folder 10 dated 7-49)
