• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 53954

• • alternative name: RCA Manufacturing || Victor Talking Machine

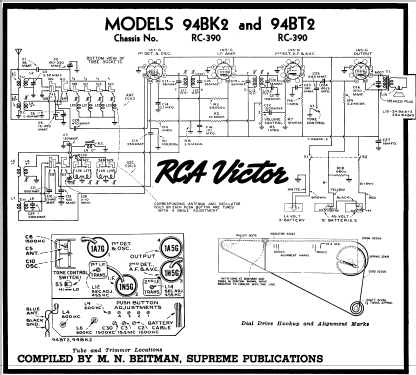

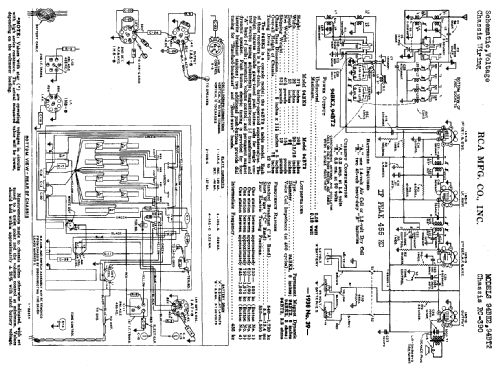

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1A7G 1N5G 1H5G 1A5G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Storage and/or dry batteries / 1.5; 2 x 45 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Power out
• 0.18 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 94BK2 Ch= RC-390 - RCA RCA Victor Co. Inc.; New

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 22 x 37.2 x 10 inch / 559 x 945 x 254 mm

• Notes
• Tuning drive ratio: 12 to 1.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before

• Mentioned in
• Pre-War Consoles

• Literature/Schematics (1)
• RCA Victor Service Notes for 1938
