• Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 53965
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Storage and/or dry batteries / 1.5; 2 x 45 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Power out
  • 0.08 W (unknown quality)
  • Material
  • Wooden case

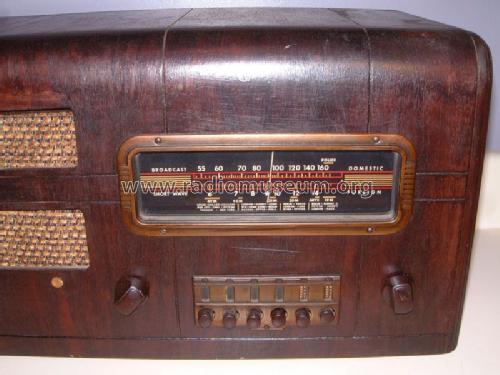

  • from Radiomuseum.org
  • Model: 94BT2 Ch= RC-390 - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 20.8 x 10.6 x 9.5 inch / 528 x 269 x 241 mm
  • Notes
  • Farm Radio. Tuning drive ratio: 12 to 1.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 10 = 1939 and before
