• Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 53970
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • TRF without regeneration
  • Tuned circuits
  • 2 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
  • Power out
  • 1 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

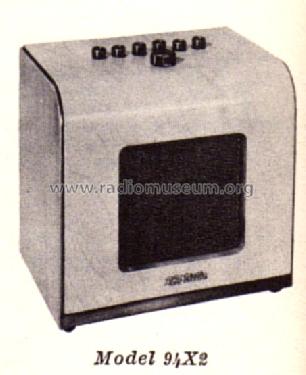

  • Model: 94X2 - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel with Push Buttons.
  • Notes
  • Voice-Coil impedance: 3 ohms at 400 cycles.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 9 = 1938 and before
  • Literature/Schematics (1)
  • RCA Victor Service Notes for 1938
