• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 54011

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6K8 6K7 6H6 6F5 6F6 5W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 96T2 - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 15 x 12.5 x 8.7 inch / 381 x 318 x 221 mm

• Notes

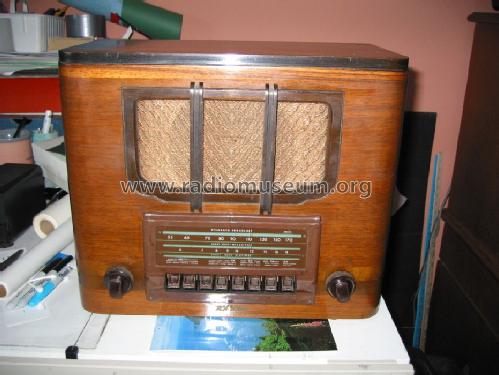

• The table model 96T2 has a "Continental" style cabinet with electric tuning (push buttons). 2 Pilot lamps is a Mazda 44, 6.3 v.
  The RCA ad in Life, September 5, 1938 offered on page 37 the models 97KG ($ 85), 95T5 ($ 24.95), 96T2 ($ 39.95) and 96T ($ 29.95) for season 1938/39, called 1939 models.

• Price in first year of sale
• 39.95 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 9 = 1938 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Machine Age to Jet Age III (RCA Victor Service Notes for 1938)
