• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 54015

• • alternative name: RCA Manufacturing || Victor Talking Machine

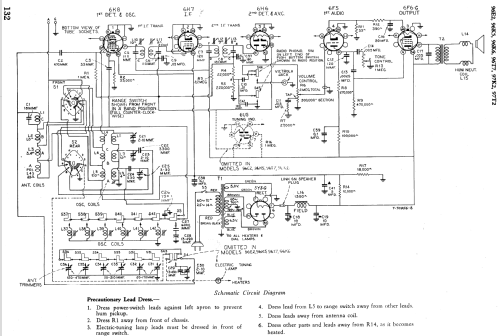

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6K8 6K7 6H6 6F5 6U5 6F6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 96T7 Ch= RC-351L - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel with Push Buttons.

• Notes

• Balast Resistor BK49B . Pilot lamp Mazda 47, 6.3 v.

  Wood with chrome grille and trim.

• Price in first year of sale
• 39.95 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 02, 1939 (RCA Victor Service Notes for 1938)

• Literature/Schematics (2)
• Machine Age to Jet Age II (page 240.)

• Literature/Schematics (3)
• Radio Retailing (Radio & Television R.) (ad February 1939 page 40)

• Other Models

• Here you find 4999 models, 2975 with images and 4046 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
