96X-14 Ch= RC-400A
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 54019
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Power out
- 2 W (unknown quality)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: 96X-14 Ch= RC-400A - RCA RCA Victor Co. Inc.; New
- Shape

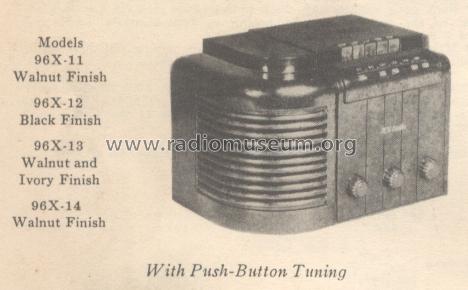

- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 11.2 x 7.2 x 7.3 inch / 284 x 183 x 185 mm
- Notes
-
Walnut finish. Ballast tube BK49B.
Also available in brown bakelite or ivory plaskon.
- Net weight (2.2 lb = 1 kg)
- 4.1 kg / 9 lb 0.5 oz (9.031 lb)
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Mentioned in
- Guide to Old Radios
- Literature/Schematics (1)
- RCA Victor Instruments Service Notes 1939
- Literature/Schematics (2)
- Table Top Radios Vol. 1 Stein 98 (page 136.)
