9-XL-1H Ch= RC-1167A
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 222729
-
- alternative name: RCA Manufacturing || Victor Talking Machine

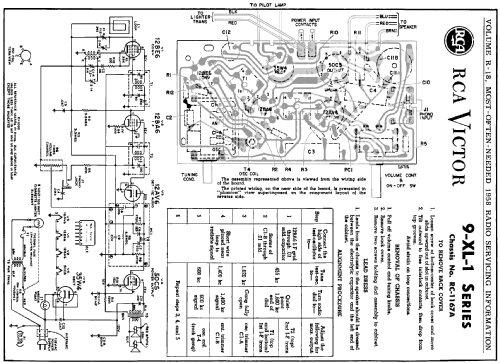

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- 2 Loudspeakers
- from Radiomuseum.org
- Model: 9-XL-1H Ch= RC-1167A - RCA RCA Victor Co. Inc.; New
- Notes
- Cigarette Lighter Element. BC Band Tuning Range: 540 - 1600kHz
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 18, 1958
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
