9TC245 Ch= KCS34B

• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1950 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 255888

• • alternative name: RCA Manufacturing || Victor Talking Machine

• Picture

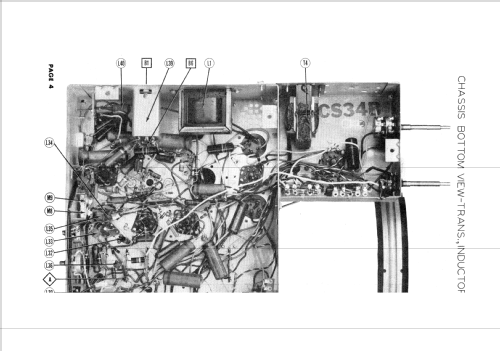

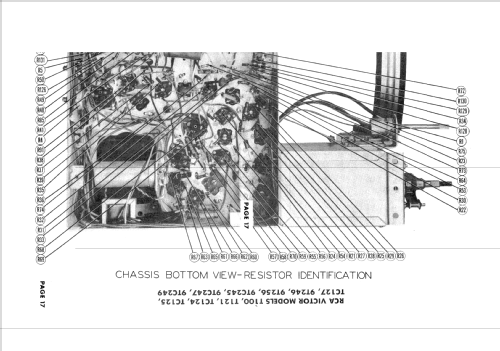

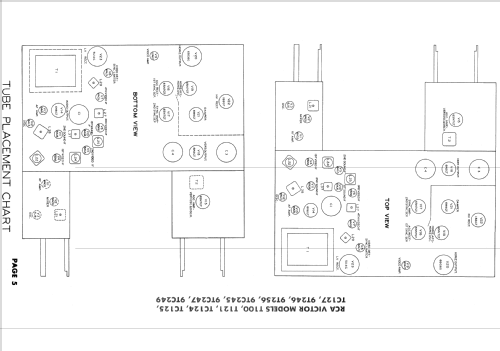

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• 6AG5 6AG5 6J6 6BA6 6AG5 6BA6 6AG5 6AL5 12AU7 6AU6 6AU6 6AL5 6AV6 6K6GT 6SN7GT 6SN7GT 6SN7GT 6K6GT 6SN7GT 6BG6G 6W4GT 1B3GT 5U4G 12LP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 9TC245 Ch= KCS34B - RCA RCA Victor Co. Inc.; New

• Shape
• Console with any shape - in general

• Notes

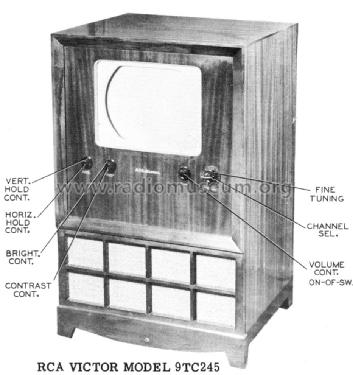

• The RCA 9TC245 is a 12" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis KCS34B and picture tube 12LP4.
