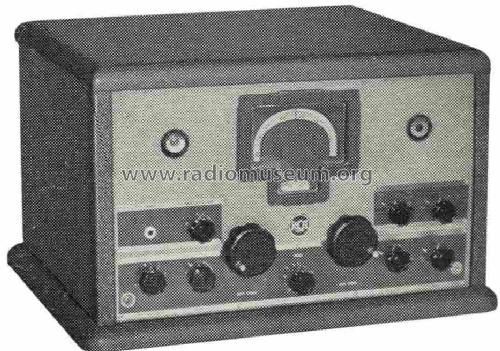

RCA RCA Victor Co.: ACR-111 [Amateur-R] ID = 472561 933x655
Select picture or schematic to display from thumbnails on the right and click for download.
For model ACR-111, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1937–1939 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Valves / Tubes 16: 6K7 6K7 6J7 6J7 6E5 6K7 6K7 6H6 6C5 6J7 6R7 6C5 6J7 6F6 6F6 5Z3
Main principle Superhet with RF-stage; ZF/IF 460 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker - This model requires external speaker(s). / Ø 8 inch = 20.3 cm
Power out 5 W (8 W max.)
from Radiomuseum.org Model: ACR-111 - RCA RCA Victor Co. Inc.; New
Material Metal case
Shape Boatanchor (heavy military or commercial set >20 kg).
Dimensions (WHD) 21 x 23.5 x 16.25 inch / 533 x 597 x 413 mm
Notes

The RCA ACR-111 covers 540 to 32,000 kHz in five ranges with electrical bandspread on all bands except the broadcast band. Has crystal filter and BFO. Standard 19 inch rack design with table top cabinet. External accessory eight inch electro dynamic speaker with output transformer.

Net weight (2.2 lb = 1 kg) 60 lb 0 oz (60 lb) / 27.240 kg
Price in first year of sale 189.50 USD
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Communications Receivers (4th edition page 118.)
Literature/Schematics (1) Radio Retailing (Radio & Television R.) (ad January 1939 page 43)
Literature/Schematics (2) QST (July 1937, rear cover)
Literature/Schematics (3) Electric Radio 371 (April 2020), pages 8 - 20
