For model ACR136 -A, RCA (RCA Victor Co. Inc.); New York (NY):
QST January 1935 page 75

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1935 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Valves / Tubes 7: 6D6 6A7 6D6 6B7 6D6 41 80
Main principle Superhet with RF-stage; ZF/IF 460 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out 1.75 W (unknown quality)
from Radiomuseum.org Model: ACR136 [-A] - RCA RCA Victor Co. Inc.; New
Material Metal case
Shape Boatanchor (heavy military or commercial set >20 kg).
Dimensions (WHD) 22 x 10.5 x 11.5 inch / 559 x 267 x 292 mm
Notes

The RCA ACR-136 covers 540 to 18,000 kHz in three bands. Includes BFO for CW reception and stand-by switch.

Price in first year of sale 69.50 USD
External source of data Ernst Erb

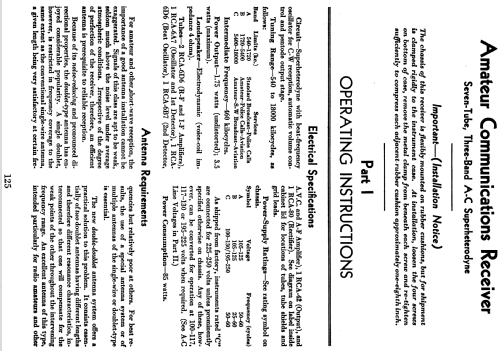

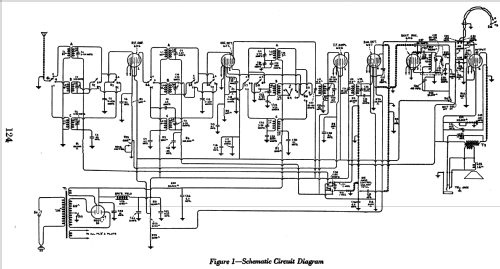

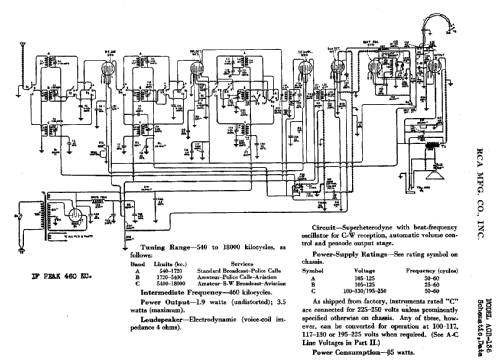

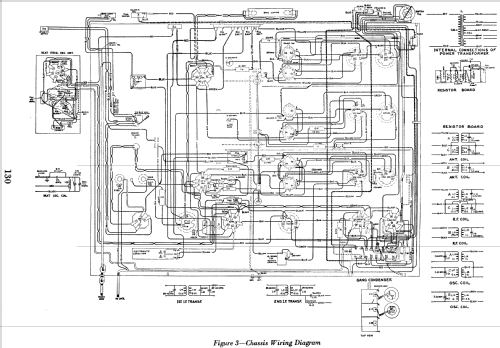

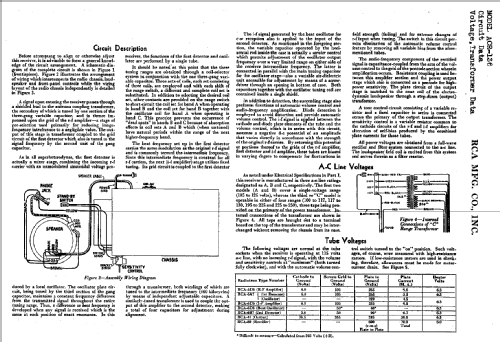

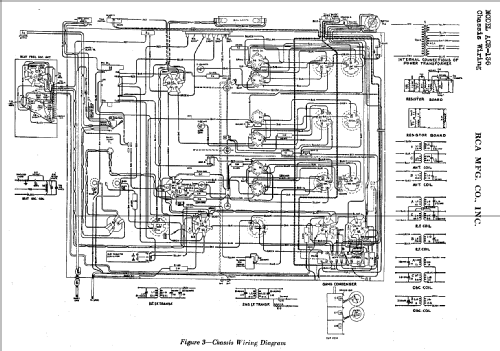

Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before
Mentioned in Communications Receivers (4th edition Page 119.)
Literature/Schematics (1) RCA Victor Service Notes "Red Book" Series
