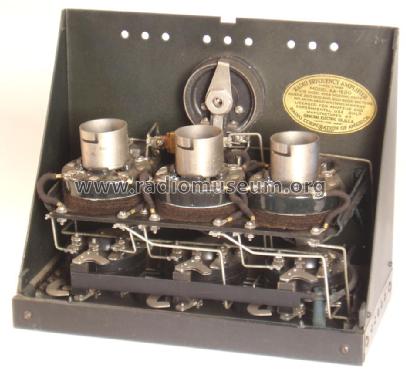

AA1520 RF-Amplifier

AA1520 RF-Amplifier; RCA RCA Victor Co. (ID = 1027719) RF-Ampl.

AA1520 RF-Amplifier; RCA RCA Victor Co. (ID = 1027720) RF-Ampl.

AA1520 RF-Amplifier; RCA RCA Victor Co. (ID = 1027721) RF-Ampl.

AA1520 RF-Amplifier; RCA RCA Victor Co. (ID = 1027722) RF-Ampl.

AA1520 RF-Amplifier; RCA RCA Victor Co. (ID = 1027723) RF-Ampl.
AA1520 RF-Amplifier; RCA RCA Victor Co. (ID = 888433) RF-Ampl. AA1520 RF-Amplifier; RCA RCA Victor Co. (ID = 888434) RF-Ampl.
Use red slider bar for more.
AA1520 RF-Amplifier; RCA RCA Victor Co. (ID = 888433) RF-Ampl.
RCA RCA Victor Co.: AA1520 RF-Amplifier [RF-Ampl.] ID = 888433 933x841
Select picture or schematic to display from thumbnails on the right and click for download.
For model AA1520 RF-Amplifier, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1922 Category: RF (Radio Frequency-) Amplifier
Valves / Tubes 3: UV201 UV201 UV201
Main principle Radio Frequency Amplification only
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: AA1520 RF-Amplifier - RCA RCA Victor Co. Inc.; New
Material Metal case
Shape Tablemodel, with any shape - general.
Notes Made for RCA by General Electric. Three stage untuned Amplifier allowed use of a loop antenna on AR1300 regenerative tuner in conjunction with AA1400 Detector Amplifier.
Painted green with silver plated dials.
Price in first year of sale 80.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Mentioned in Radio Manufacturers of the 1920's, Vol. 3
