Aircraft Radio Receiver ARB CRV-46151

Aircraft Radio Receiver ARB CRV-46151; RCA RCA Victor Co. (ID = 966997) Military

Aircraft Radio Receiver ARB CRV-46151; RCA RCA Victor Co. (ID = 1974059) Military
Aircraft Radio Receiver ARB CRV-46151; RCA RCA Victor Co. (ID = 1774340) Military Aircraft Radio Receiver ARB CRV-46151; RCA RCA Victor Co. (ID = 961124) Military
Aircraft Radio Receiver ARB CRV-46151; RCA RCA Victor Co. (ID = 621465) Military Aircraft Radio Receiver ARB CRV-46151; RCA RCA Victor Co. (ID = 961147) Military
Aircraft Radio Receiver ARB CRV-46151; RCA RCA Victor Co. (ID = 1774341) Military Aircraft Radio Receiver ARB CRV-46151; RCA RCA Victor Co. (ID = 1974058) Military

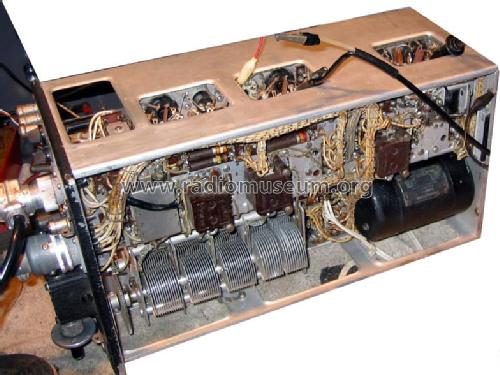

Aircraft Radio Receiver ARB CRV-46151; RCA RCA Victor Co. (ID = 2592570) Military Aircraft Radio Receiver ARB CRV-46151; RCA RCA Victor Co. (ID = 2592571) Military
Use red slider bar for more.

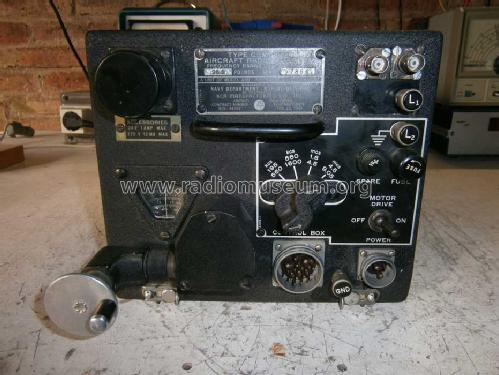

Aircraft Radio Receiver ARB CRV-46151; RCA RCA Victor Co. (ID = 1774340) Military
RCA RCA Victor Co.: Aircraft Radio Receiver ARB CRV-46151 [Military] ID = 1774340 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Aircraft Radio Receiver ARB CRV-46151, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1942 Category: Military Equipment (not Re, Tr or RXT)
Valves / Tubes 12SF7 12SA7 12SF7 12SF7 12SF7 12A6
Main principle Superheterodyne (common); ZF/IF 135 or 915 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 28 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Aircraft Radio Receiver ARB CRV-46151 - RCA RCA Victor Co. Inc.; New
Material Metal case
Shape Boatanchor (heavy military or commercial set >20 kg).
Dimensions (WHD) 8 x 7 x 15 inch / 203 x 178 x 381 mm
Notes Aircraft Radio Receiver CRV-46151;
Coverage:
195 KHz - 9050 KHz in four ranges,
built in dynamotor power supply, for remote operation, motorised band change, frequency tuning by flexible bowden cable, bandwidth and antenna selection is by relay, made by RCA for Navy Department-Bureau of Ships. A unit of model ARB aircraft radio equipment, suitable Receiver Tuning Head Type CRV-23253.
Net weight (2.2 lb = 1 kg) 12.167 kg / 26 lb 12.8 oz (26.8 lb)
Mentioned in The Surplus Handbook - Receivers and Transmitters (page 5-6)

Model page created by a member from A. See "Data change" for further contributors.
